ClampingPrice range: R499.00 through R1,499.00 Excl. VAT
Genuine toolingOfficial Nexcut, Helixor & Zycron supply
Fast dispatch1–3 working days on stocked items
Local supportHelp matching geometry, grade and size

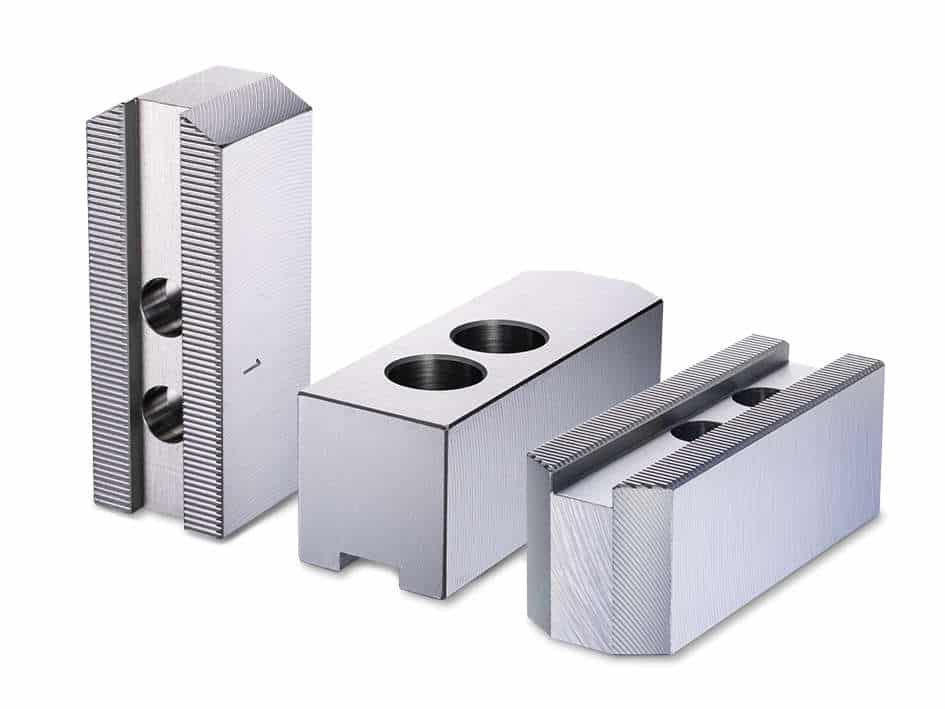

Upgrade your machining precision with our Standard Soft Jaws, designed for exceptional adaptability and performance. Crafted from premium materials, these soft jaws provide a reliable, secure grip while minimizing the risk of damage to your workpieces. Perfectly suited for lathes and CNC machines, they allow for customized machining by enabling precise shaping and adjustments to match unique specifications.
| Size | 5", 6", 8", 10", 12" |
|---|
| Model | L | W | H | D | Center Distance of Screw Hole | Tooth Pitch | Universal Chuck |
|---|---|---|---|---|---|---|---|
| 4 inch | 49.5 | 23 | 23 | 10 | 14 | 1.5°×60° | 4 inch chuck (External diameter 110) |
| 5 inch | 54 | 25 | 30 | 10 | 14 | 1.5°×60° | 5 inch chuck (External diameter 135) |
| 6 inch | 73 | 31 | 36 | 12 | 20 | 1.5°×60° | 6 inch chuck (External diameter 169) |
| 8 inch | 95 | 35 | 37 | 14 | 30 | 1.5°×60° | 8 inch chuck (External diameter 210) |
| 10 inch | 110 | 40 | 42 | 14 | 35 | 1.5°×60° | 10 inch chuck (External diameter 254) |
| 12 inch hollow | 130 | 50 | 50 | 21 | 40 | 1.5°×60° | 12 inch chuck (External diameter 304) |
