HX45 12mm Long Series 4 Flute Square Carbide End Mill

R1,348.50 Excl. VAT

In stock

D1:12mm
Ap1:45mm
L:100mm
D:12mm

Genuine toolingOfficial Nexcut, Helixor & Zycron supply

Fast dispatch1–3 working days on stocked items

Local supportHelp matching geometry, grade and size

Secure paymentProtected checkout through trusted South African gateways
VISAMastercardPayfastYoco
Nationwide delivery from R125Free standard delivery over R1,500

Description

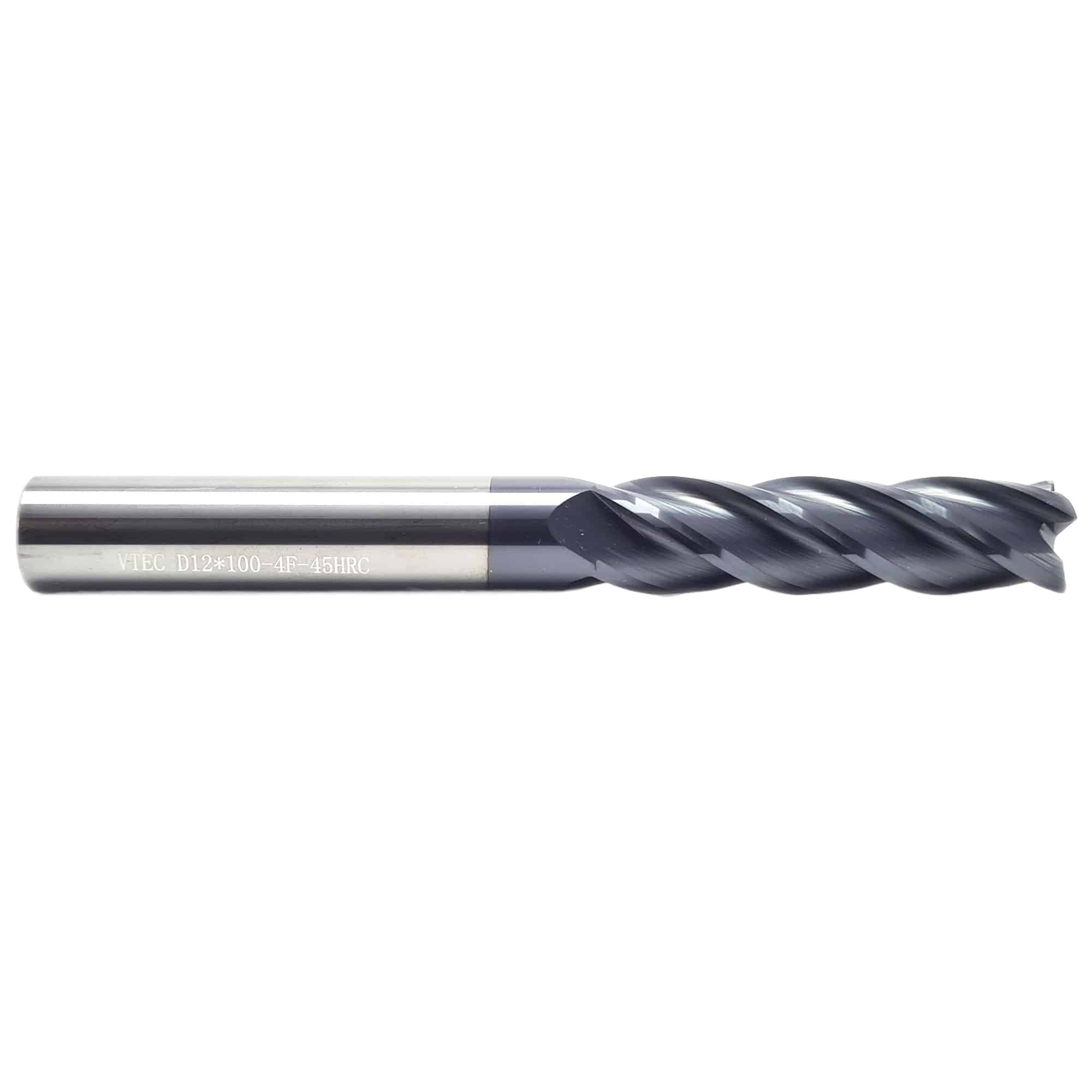

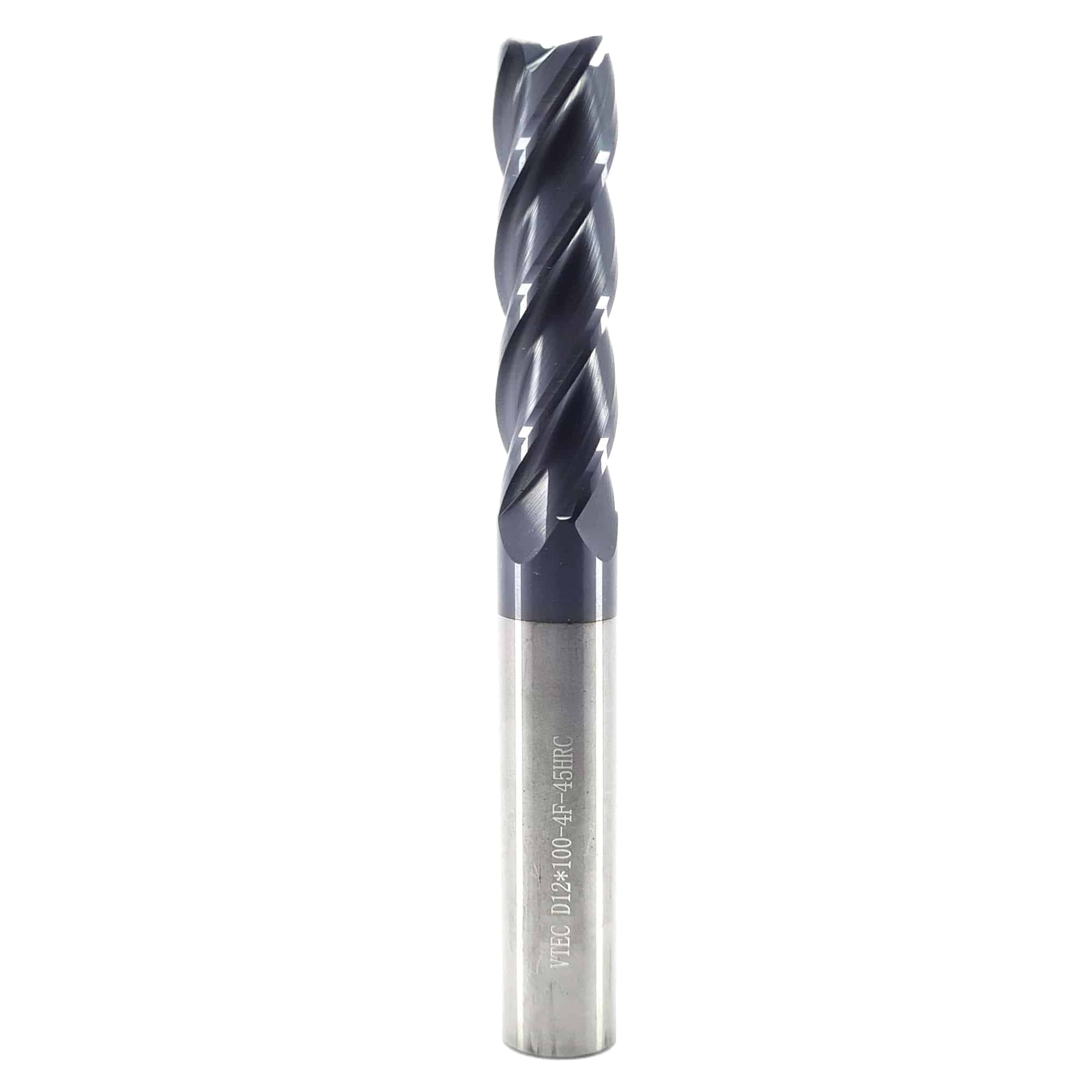

The Helixor HX-45 12mm Long Series 4-flute square solid carbide endmill is designed for extended-reach machining in steel and ferrous materials. Manufactured from sub-micron tungsten carbide and hardened to 45 HRC, it maintains cutting stability at increased lengths. The AlTiN coating enhances heat resistance and wear protection, while eccentric relief and variable pitch geometry minimize chatter.

Sizing Information

SHANK DIAMETER 12mm
SHANK LENGTH 50mm
CUTTING DIAMETER 12mm
CUTTING LENGTH 50mm
OVERALL LENGTH 100mm
NUMBER OF FLUTES 4
CUTTING STYLE Square
